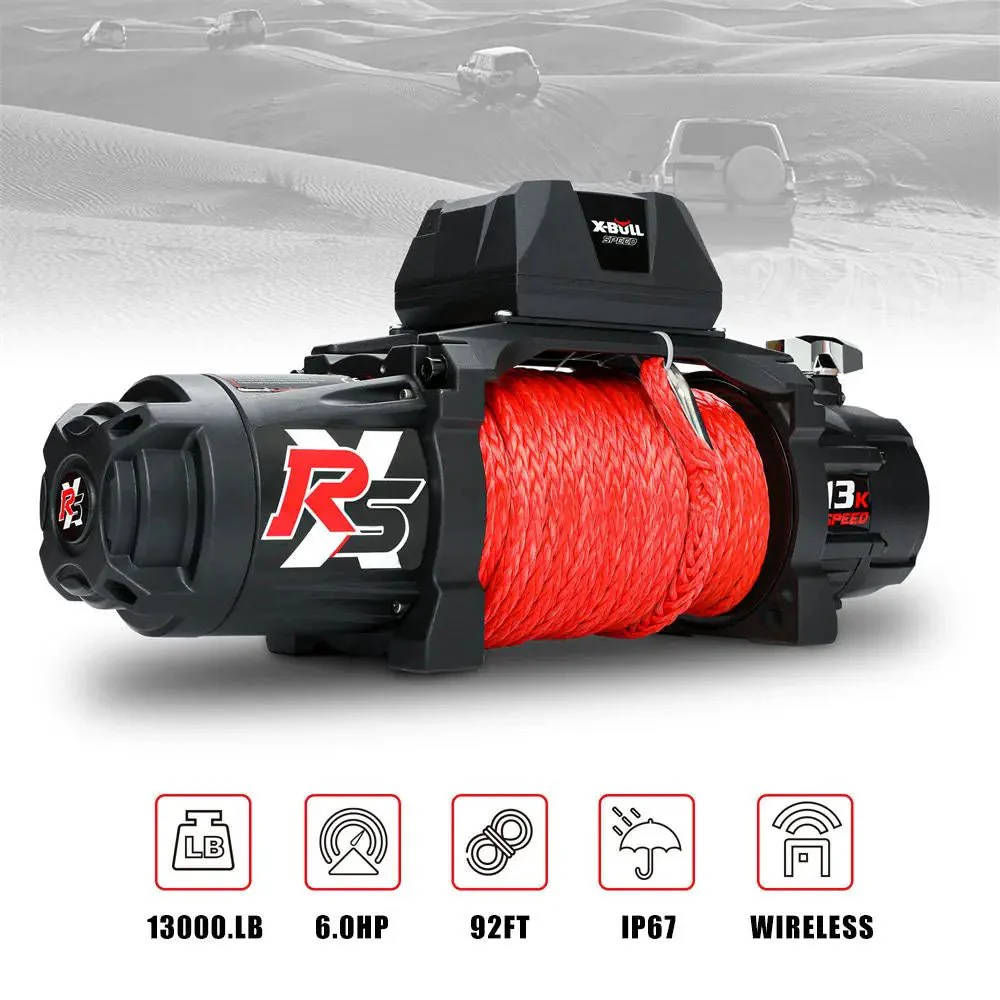

X-BULL High Speed Electric Winch XRS 13000 LBS 12V Synthetic Rope for SUV Jeep Truck 4WD

The XRS series electric winch is the ideal combination of speed, innovation and performance for the user. It exceed the most demanding standards of today's modern cars while offering affordable fashion design and incorporating many top-notch leading features not found in other high performance winches. Real gear change, non-motor acceleration.

• 6.0 HP SERIES WOUND MOTOR:The XRS 13000 lbs electric winch is equipped with 6.0 HP sealed motors for reliability and consistent traction that work safely and efficiently. The technology and quality of these contacts resist arcing when switching currents. This prevents the contacts from fusing together to form a closed circuit, which could damage the winch. All wires of the winch are copper. Environmentally friendly, low resistivity, high strength, low heat, low electrical losses and higher stability.
• NEW FORGED GEARING: Switch to high speed to pull the synthetic rope in fast. The extra-long wiring harness is long enough for any vehicle and makes use of a quick-disconnect winch power cable.

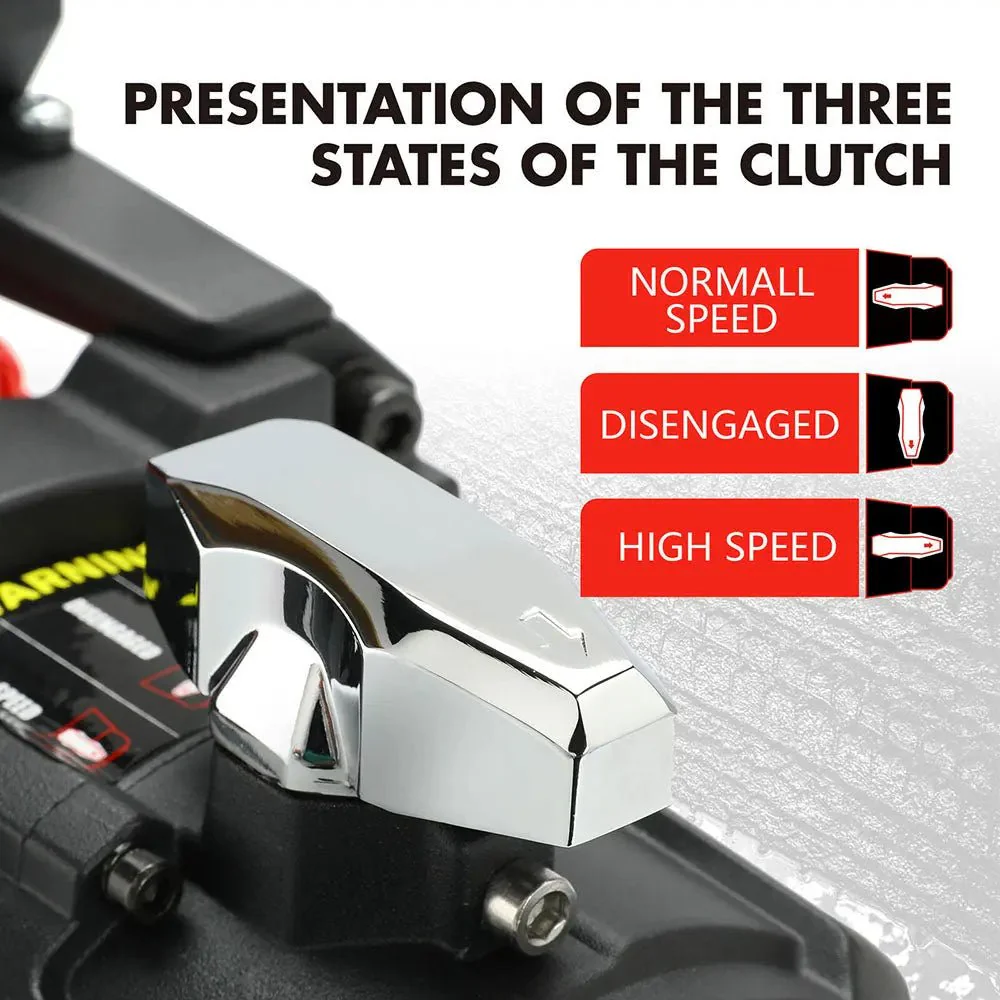

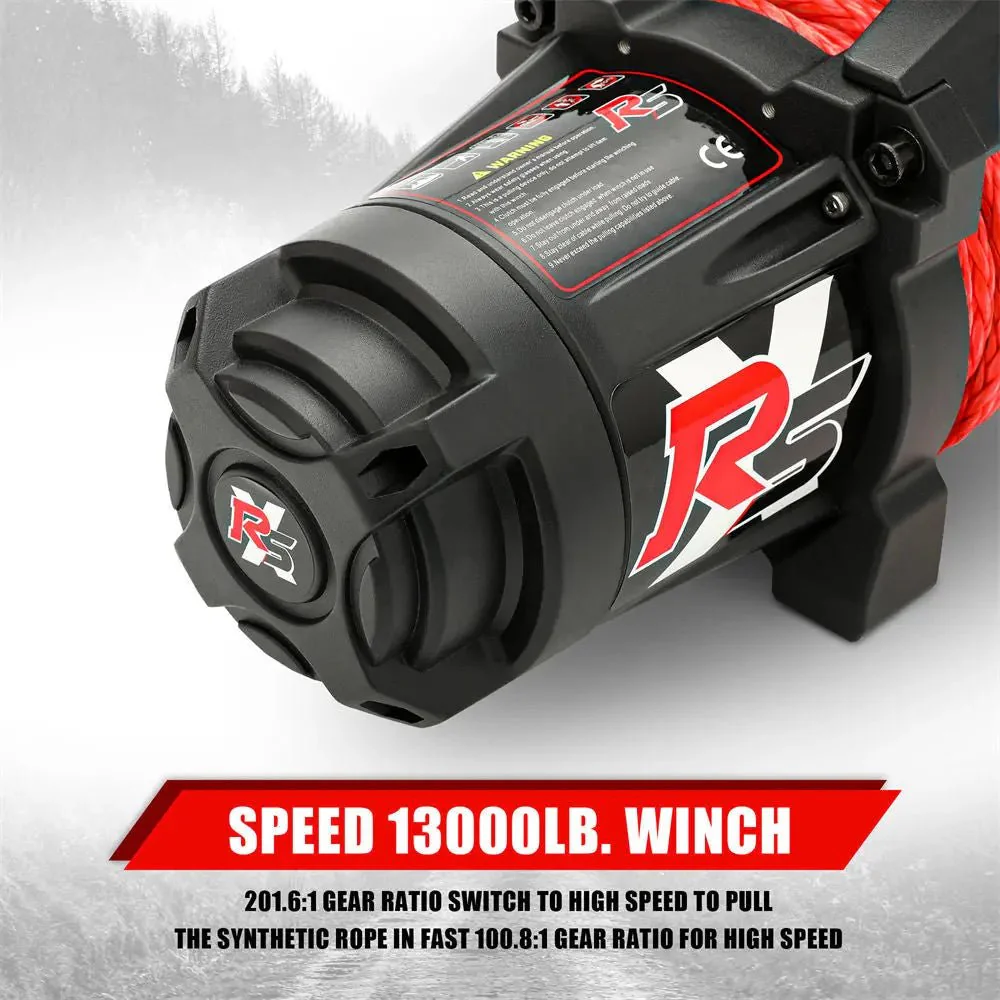

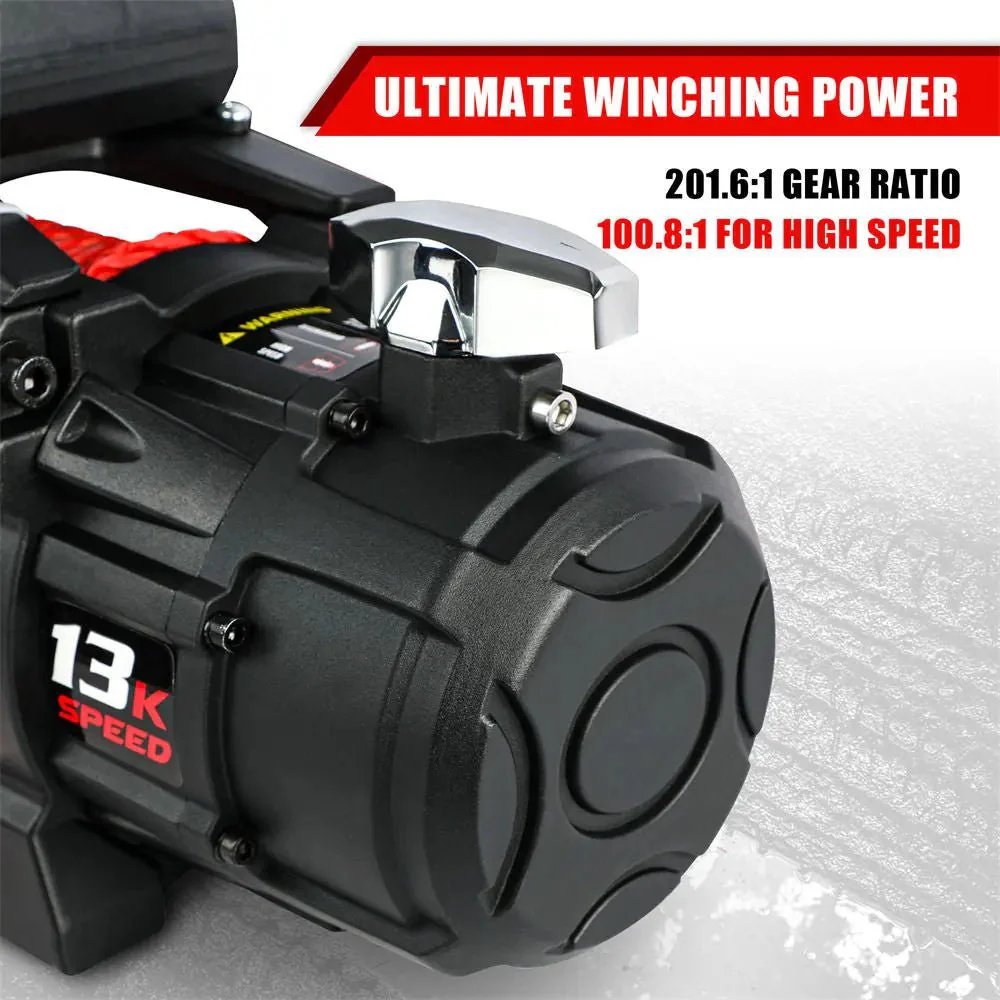

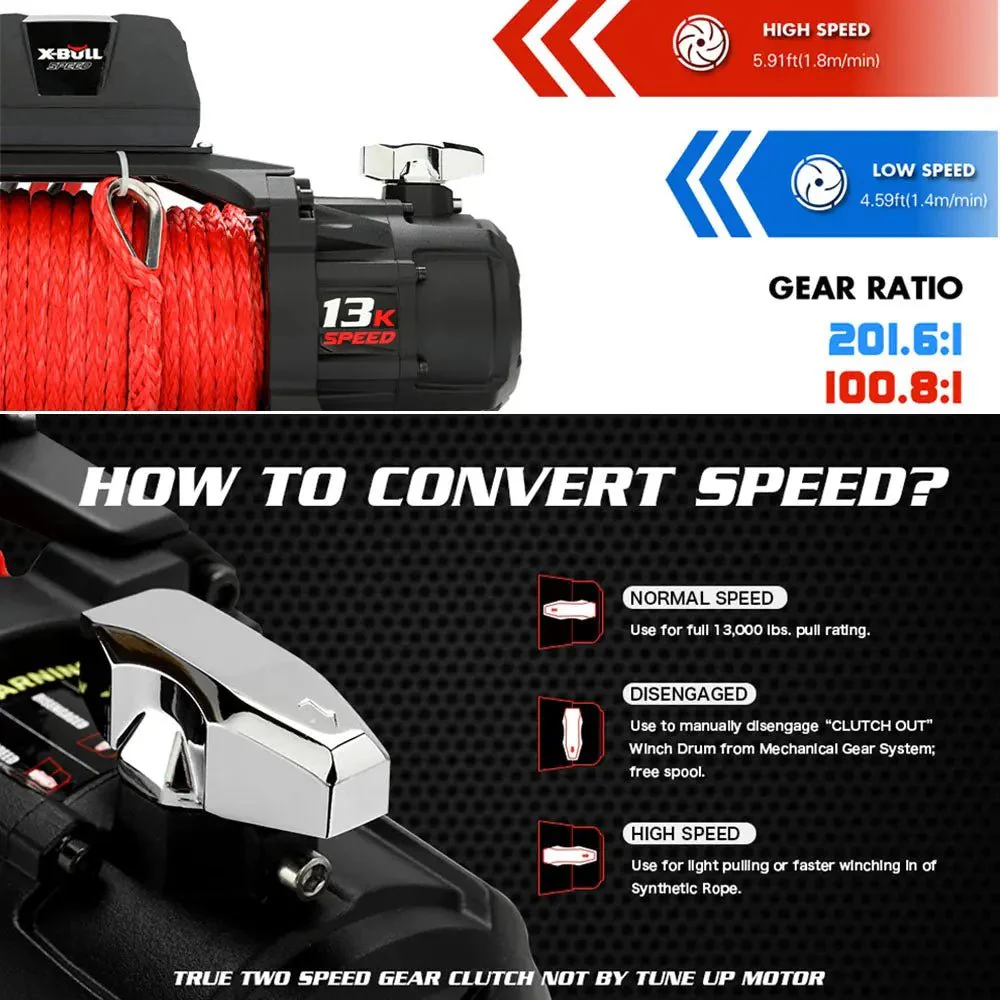

• ADJUSTABLE GEAR RATIO & SWITCHABLE SPEED: Adjustable gear ratio for a balance between pulling power and line speed. 100.8:1 for high speed, 201.6:1 for normal speed.
• PULLS 3M WITHIN 99 SECONDS: 20% increase in overall rope feeding speed within 100 seconds of rescue time. More stable and faster than traditional winch. Suitable for competition, all kinds of environment crossing, quick rescue.

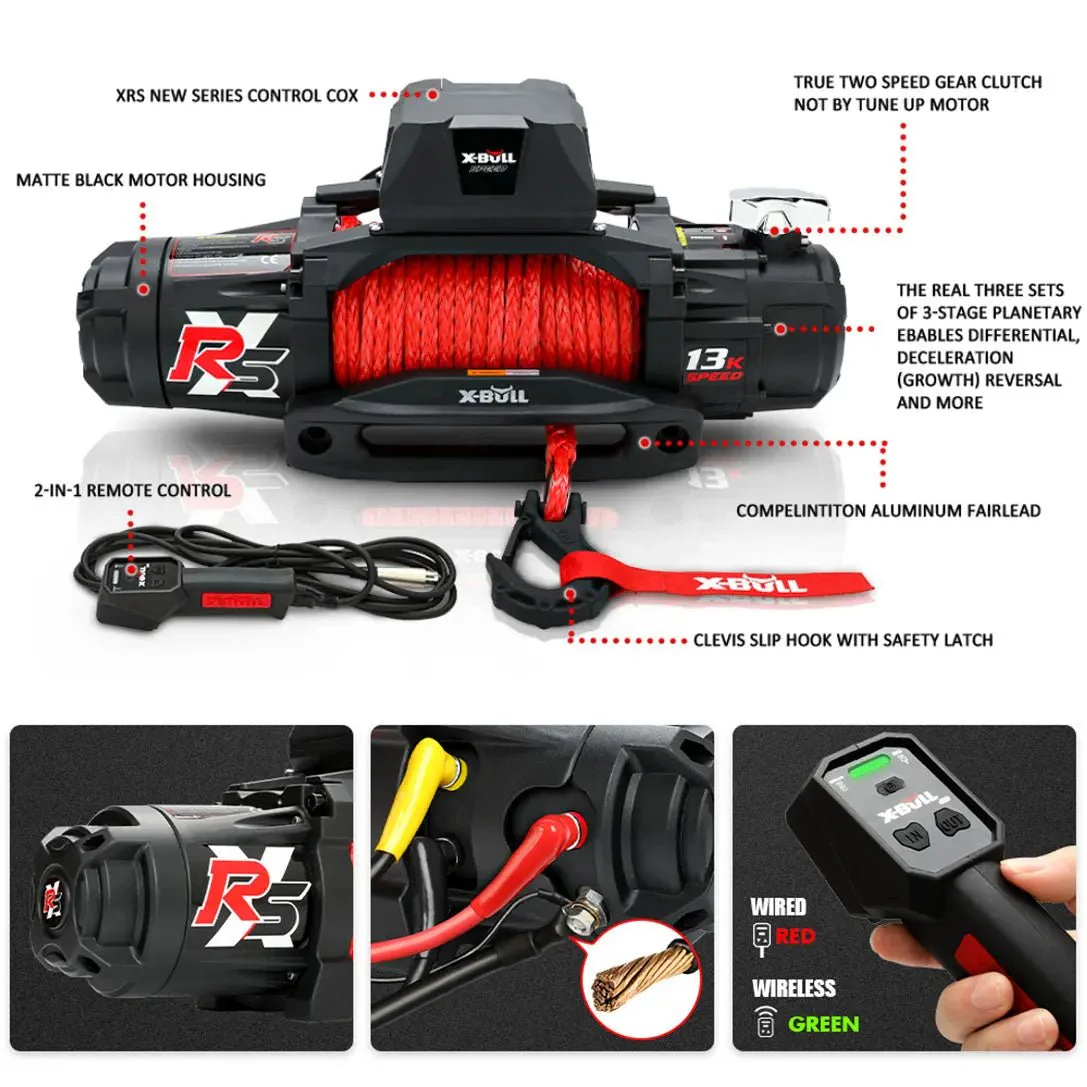

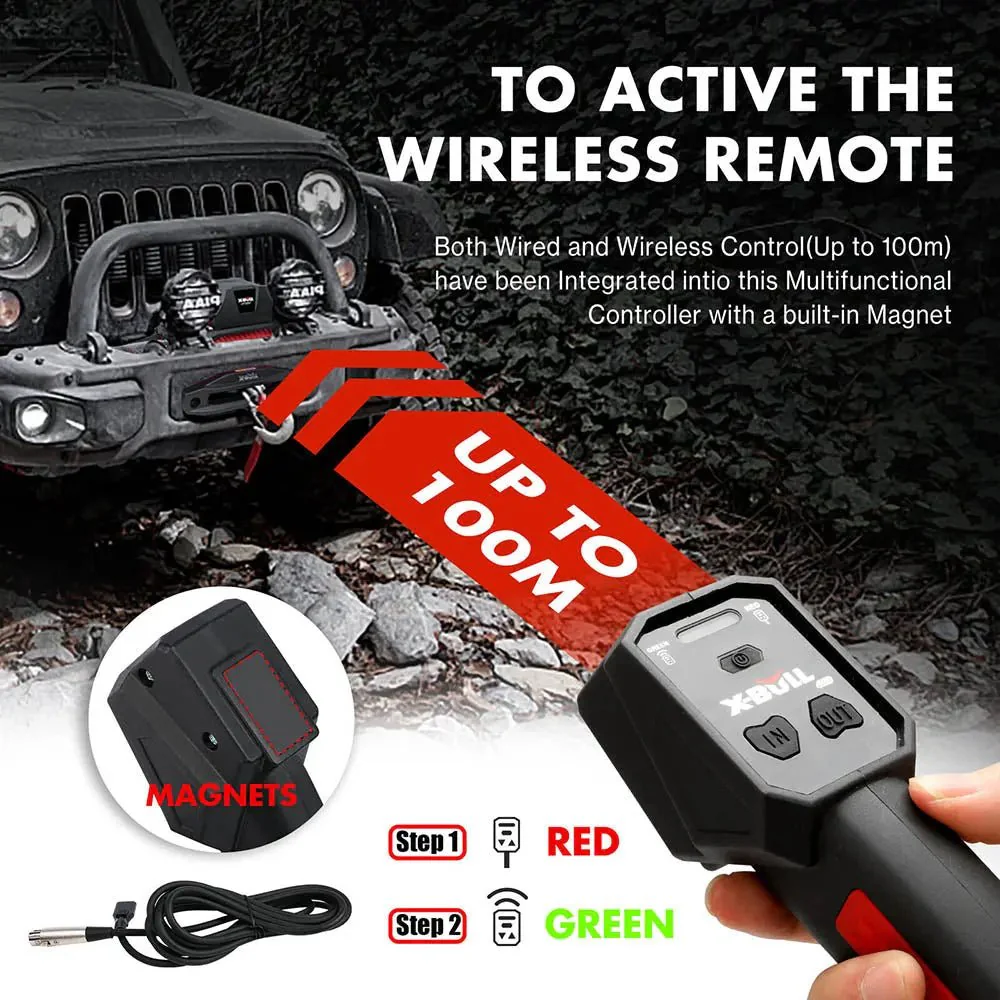

• 2 IN 1 MULTI-FUNCTIONAL REMOTE CONTROL: Both wired and wireless control have been integrated into this multi-functional controller with a built-in magnet.
• LOWER AMP DRAW: We've re-engineered the internal rotor using specialized silicon steel. This provides a more efficient electrical through put to give you more power while drawing loss amperage.
• EASY CONNECTION: All wires of the electric winch are copper. Environmentally friendly, low resistivity, high strength, low heat, low electrical losses and higher stability.

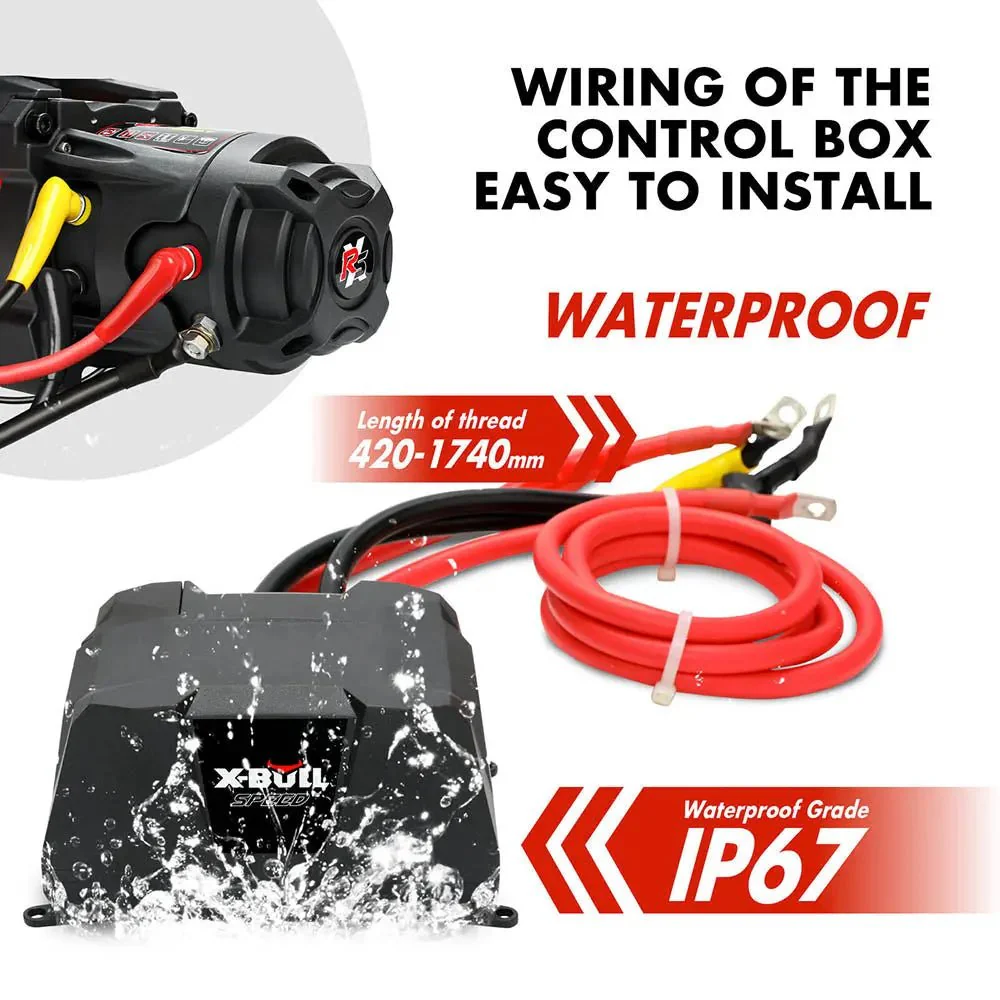

• WATERPROOF: The XRS-13000 winch is featuring IP67 rating for dust and water resistant operation, and a durable black sand plastic pellet coating complete.

SPECIFICATIONS

Rated Line Pull	13000 lbs (5896 kg)
Motor	6.0 HP Series Wound
Gear Train	3-Stage Planetary
Gear Reduction Ratio	201.6:1      100.8:1
Brake	Automatic In-The Drum
Control	2 in 1 Multi-Functional Remote Control
Battery	12VDC, Minimum 650 CCA

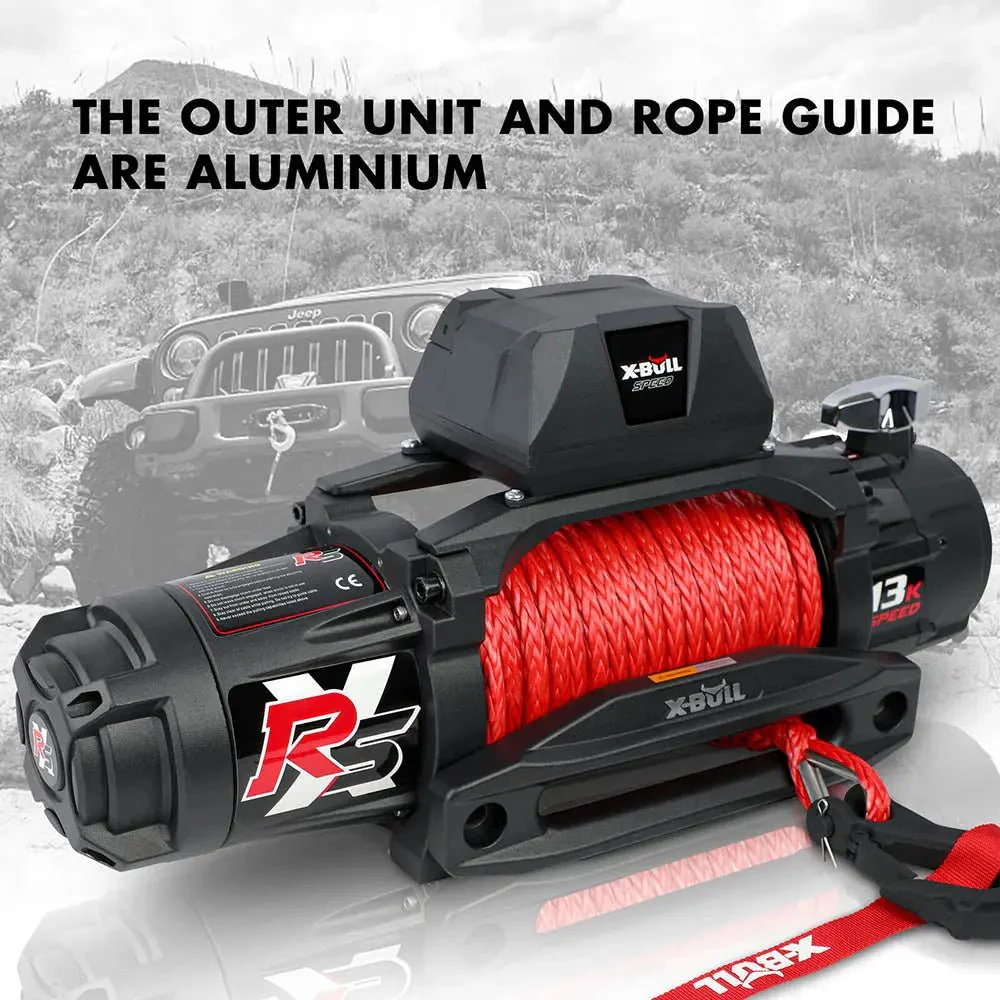

Fairlead	Aluminium Hawse Fairlead

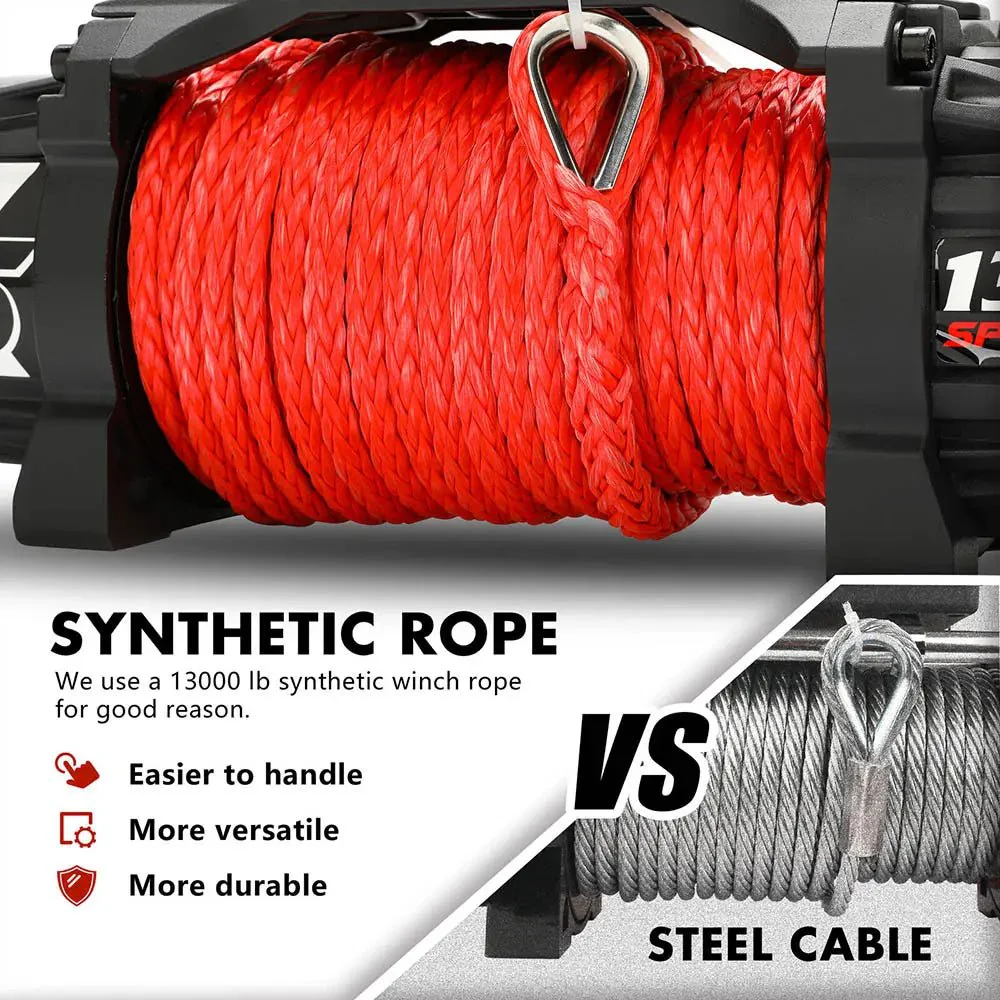

Cable Type	Synthetic Rope
Cable Size (D x L)	2/5" X 92' (10 mm X 28 m)

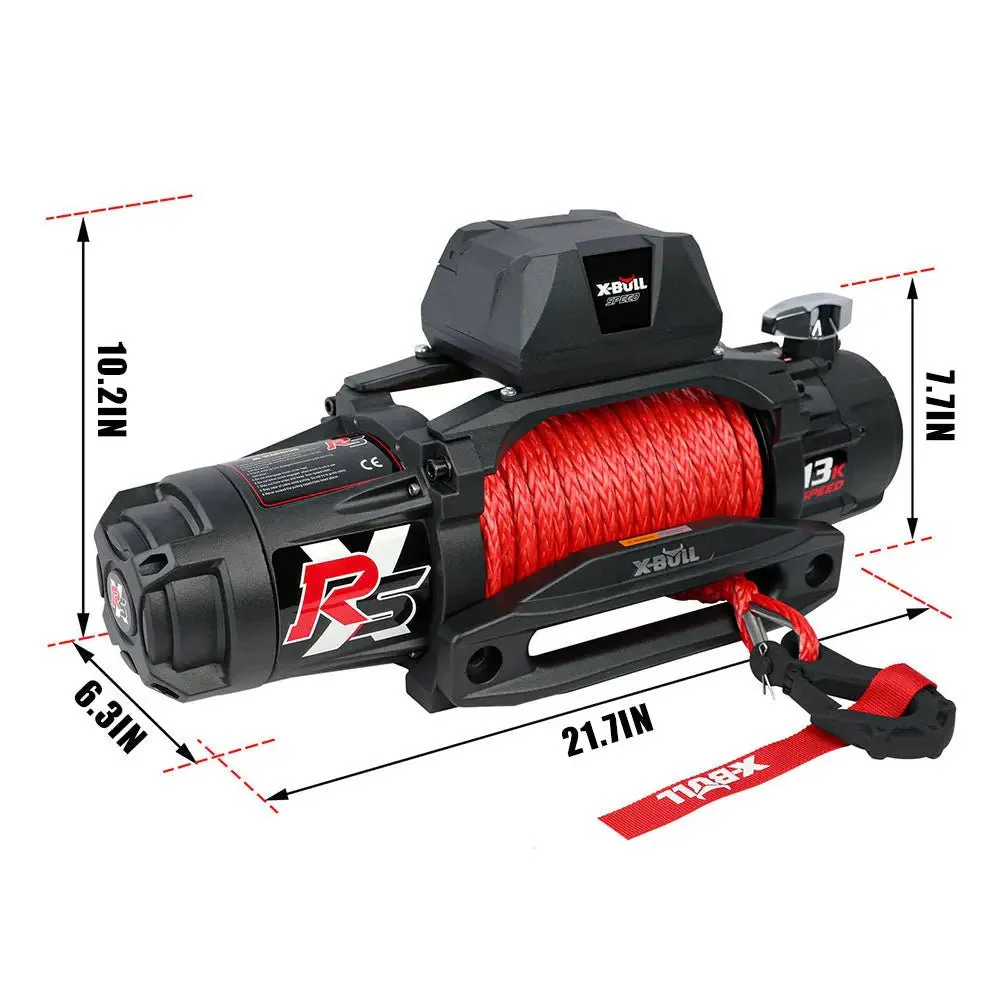

Overall Dimensions (L x W x H)	23.6" X 13.4" X 10.2" (600 mm X 340 mm X 260 mm)
Drum Size (D x L)	2.5" X 9" (64 mm X 228 mm)

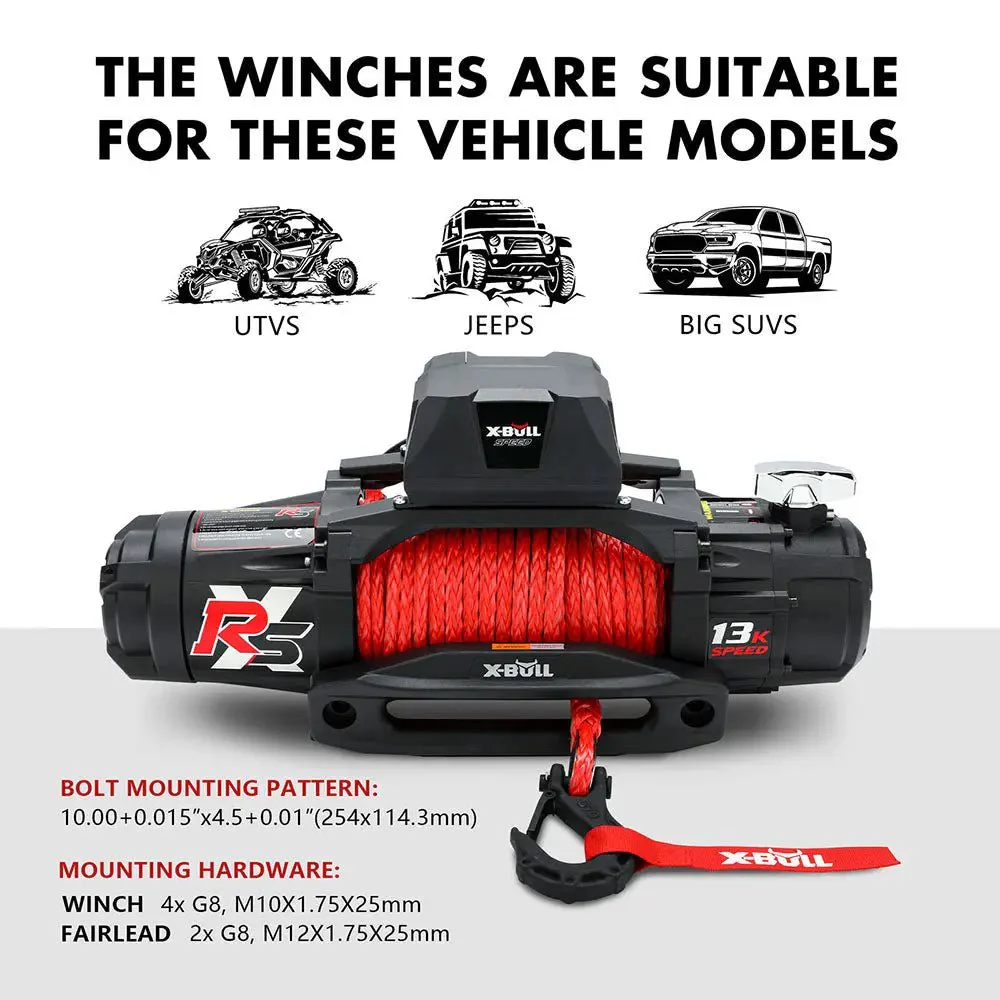

Bolt Pattern	10" X 4.5" (254 mm X 114.3 mm)
Weight	60.18 lbs (27.30 kg)
Waterproof Rating	IP67

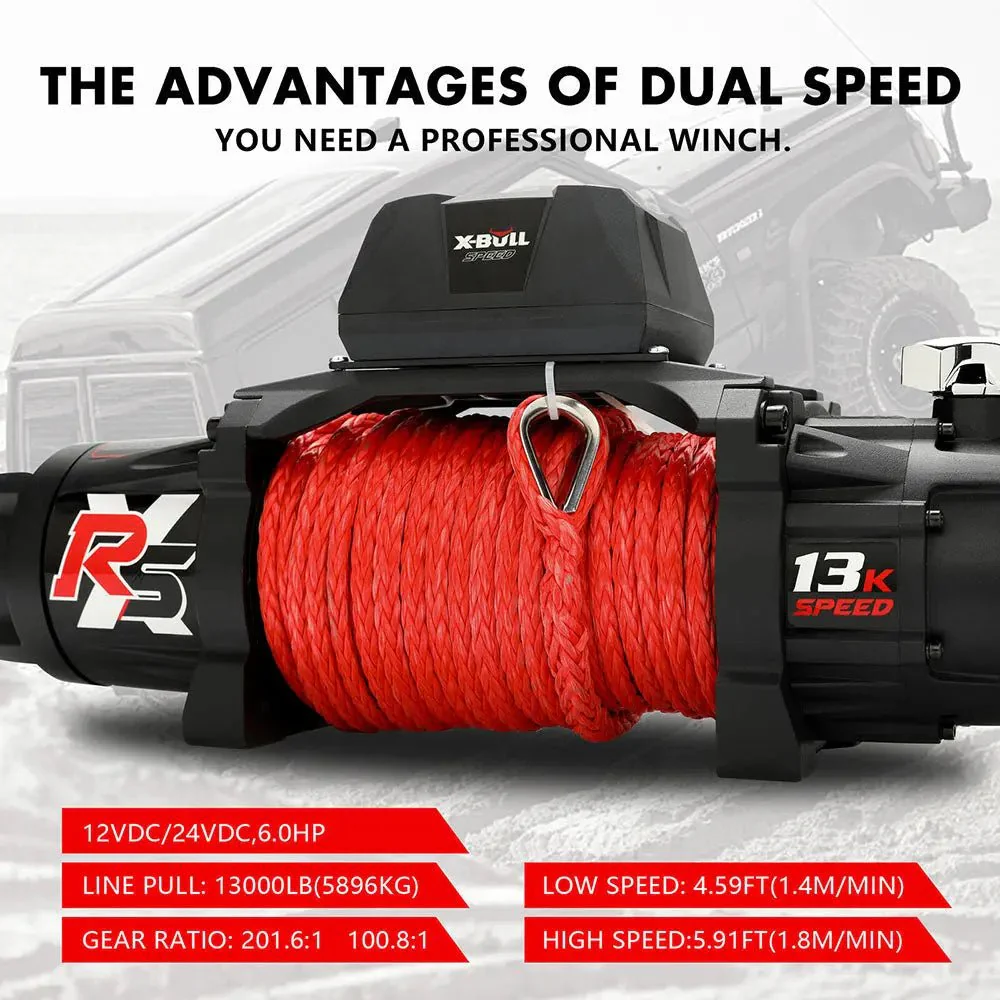

Line Speed (Max Line Pull)	Normal Speed: 4.59 fpm (1.4 mpm)    High Speed: 5.91 fpm (1.8 mpm)
Amp Draw (Max Line Pull)	Normal Speed: 420 (@ 12V)    High Speed: 430 (@ 12V)
Application	UTV/Truck/Jeep/SUV

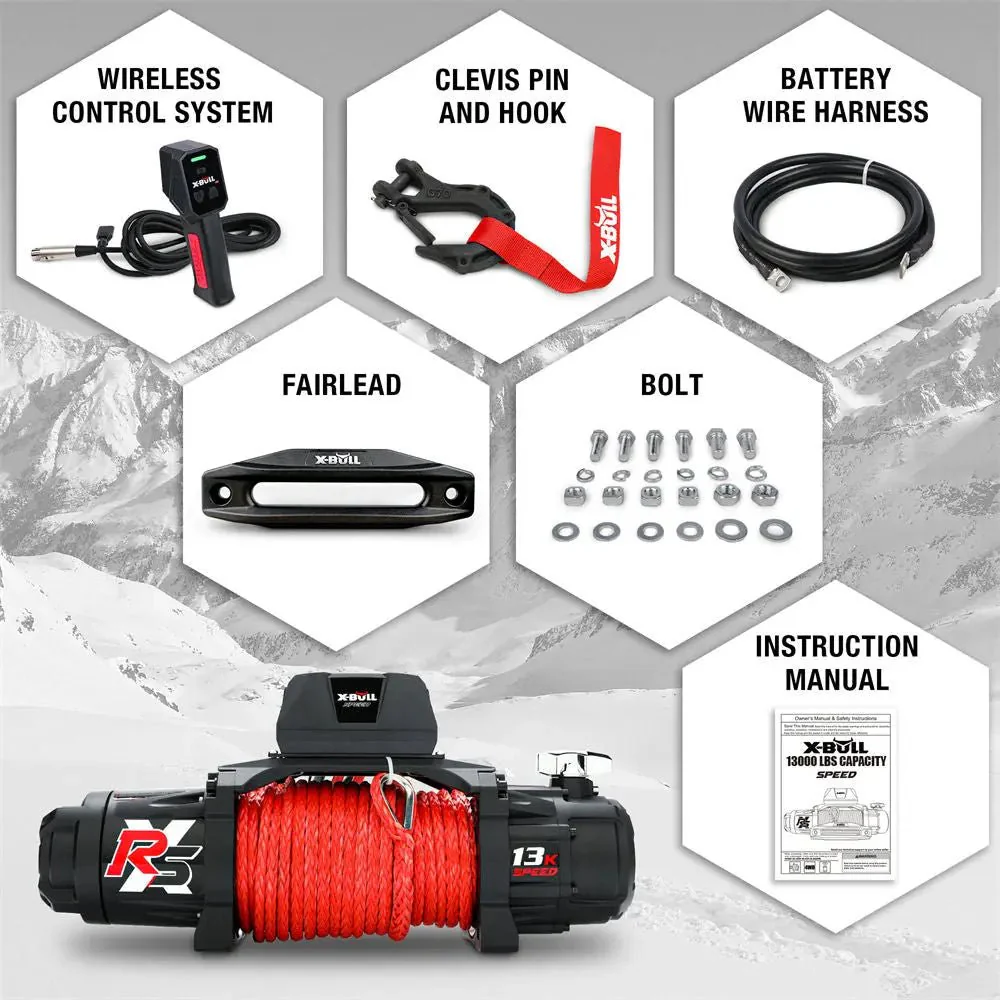

IN THE BOX

• 1 X 13000 LBS Winch
• 1 X Multi-Functional Remote Control
• 1 X Hand Switch
• 1 X Aluminium Hawse Fairlead
• 1 X Control Box
• 3 X Motor Leads
• 1 X Power Leads
• 1 X Clevis Hook
• 1 X Set of Bolts
• 1 X User Manual



SAFETY TIPS

Using a winch can be dangerous, so be sure to follow the following tips to minimize the risk of personal injury or equipment damage:

1. Be sure to wear thick work gloves when handling winches, as cables can easily damage your hands.
2. When rewinding the cable, do not let the cable pass through your hand.
3. If you are using trees as anchors, always wrap tree trunk protectors near the bottom of the ground; Wrap it too high, and there's a lot of leverage that can uproot the tree.
4. For extreme winch conditions, use a heavy blanket, drag or winch to weigh the strained cable. This helps absorb the released energy and makes it more likely to fall to the ground if it is released suddenly and suddenly.
5. When using a winch with others, use a set of agreeing gestures to prevent communication errors.
6. Do not stand on or straddle the tight winch lines and avoid standing between the towed object and its anchor. If the line gets stuck and hits you, you can easily trip and risk serious injury.
7. Check the condition of winch regularly. Before each cross-country drive, check the cable for corrosion, kink or wear, and check the surface of the roller.
8. Clean the winch regularly. If it is dirty, damage will be harder to detect and the dirty metal will rust faster.
9. Never hook the cable on itself as this can cause damage and increase the risk of the clasp. Always use a tree trunk protector instead.
10. Always make sure the hook opening is facing up. If the hook fails, these forces are on the ground and not in the air.
