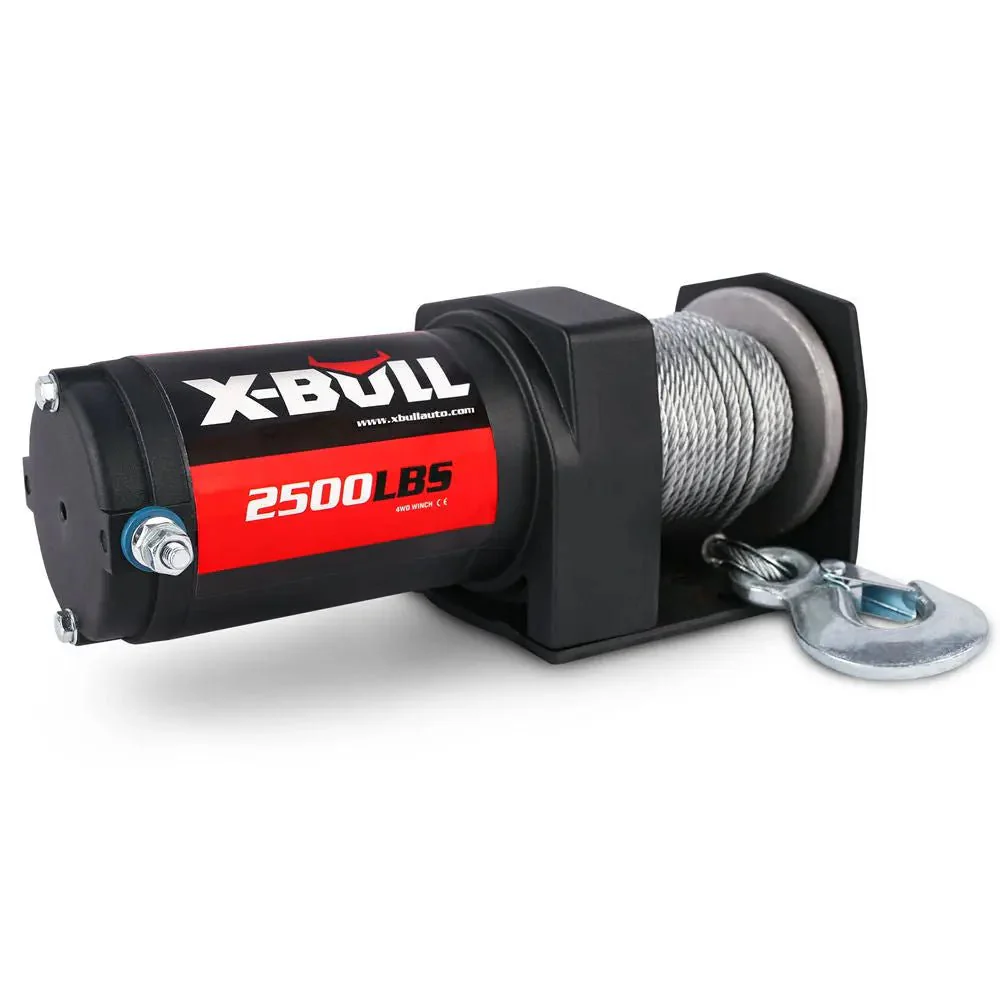

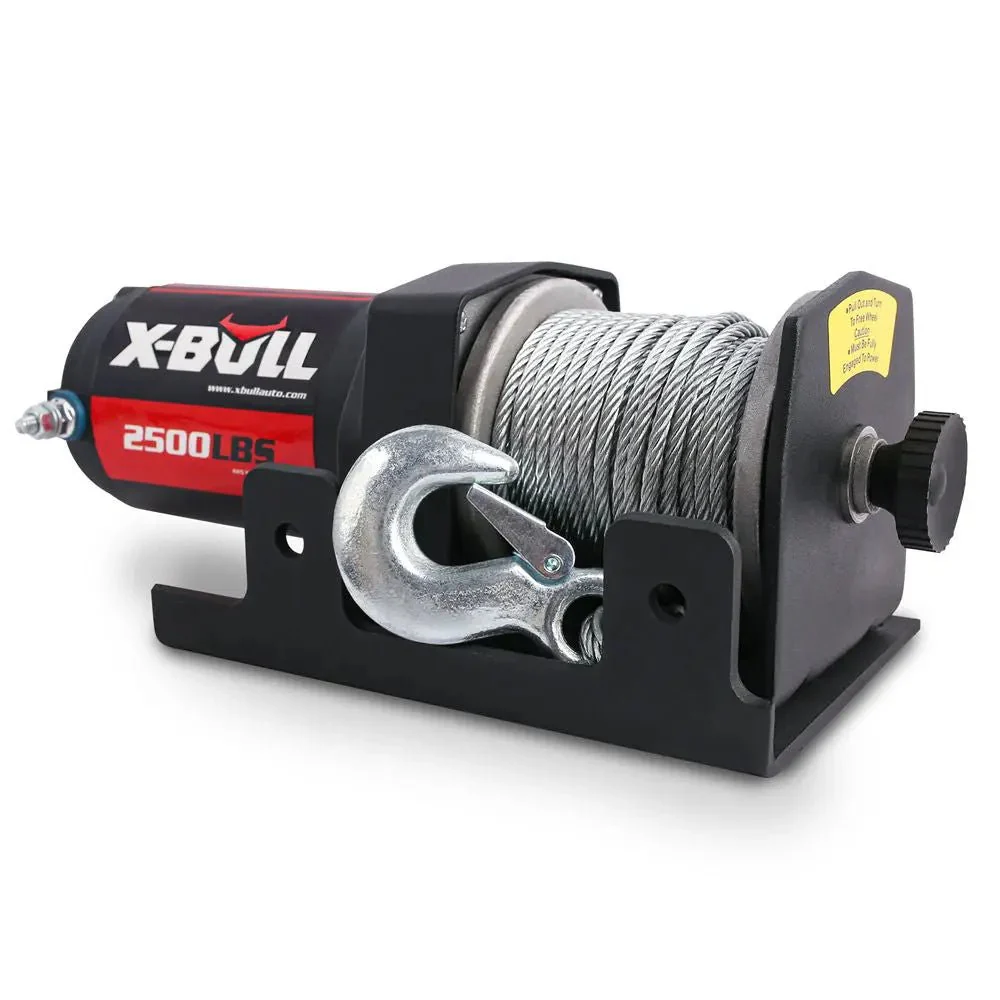

X-BULL Electric Winch 2500 LBS 12V Steel Cable ATV UTV Truck 4WD
SPECIFICATIONS
| Rated Line Pull | 2500 lbs (1134 kg) |

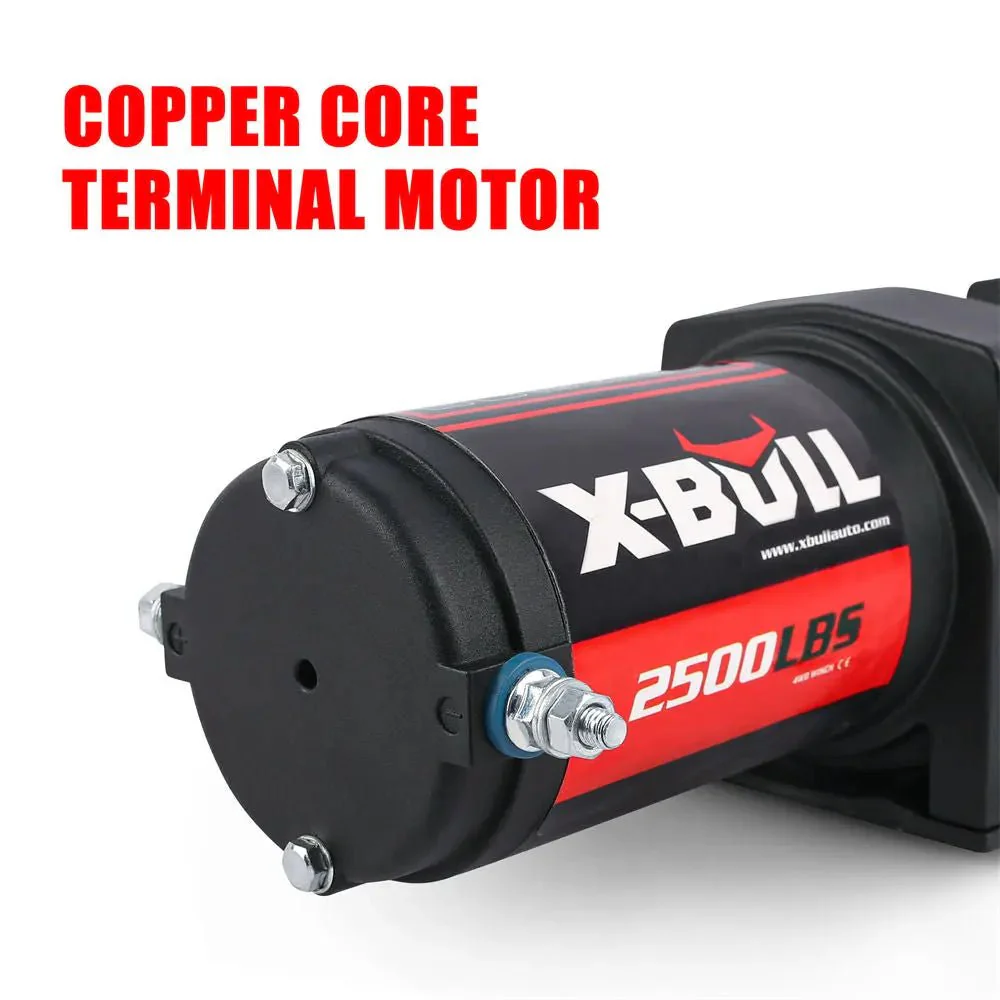

| Motor | 1 HP Permanent Magnet, Pure Copper |
| Gear Train | Single-Stage Planetary |
| Gear Reduction Ratio | 153:1 |
| Brake | Auto. Load Holding Mechanical |
| Control | Wire Remote Control |
| Battery | 12V DC, Minimum 12Ah |
| Battery Cables | 10 Gauge, 5.8' (1.78 m) |
| Fairlead | Roller Hawse Fairlead |
| Cable Type | Steel Cable |

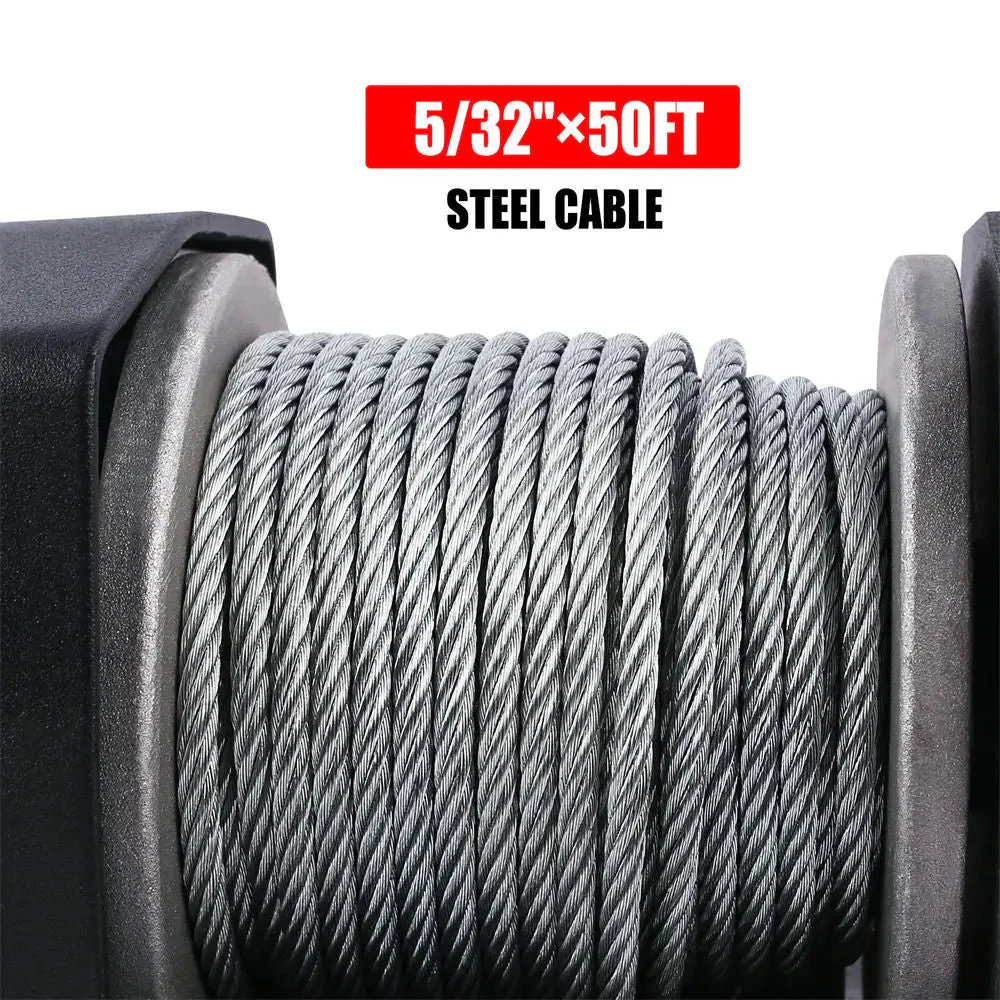

| Cable Size (D x L) | 5/32" X 50' (4 mm X 15.2 m) |

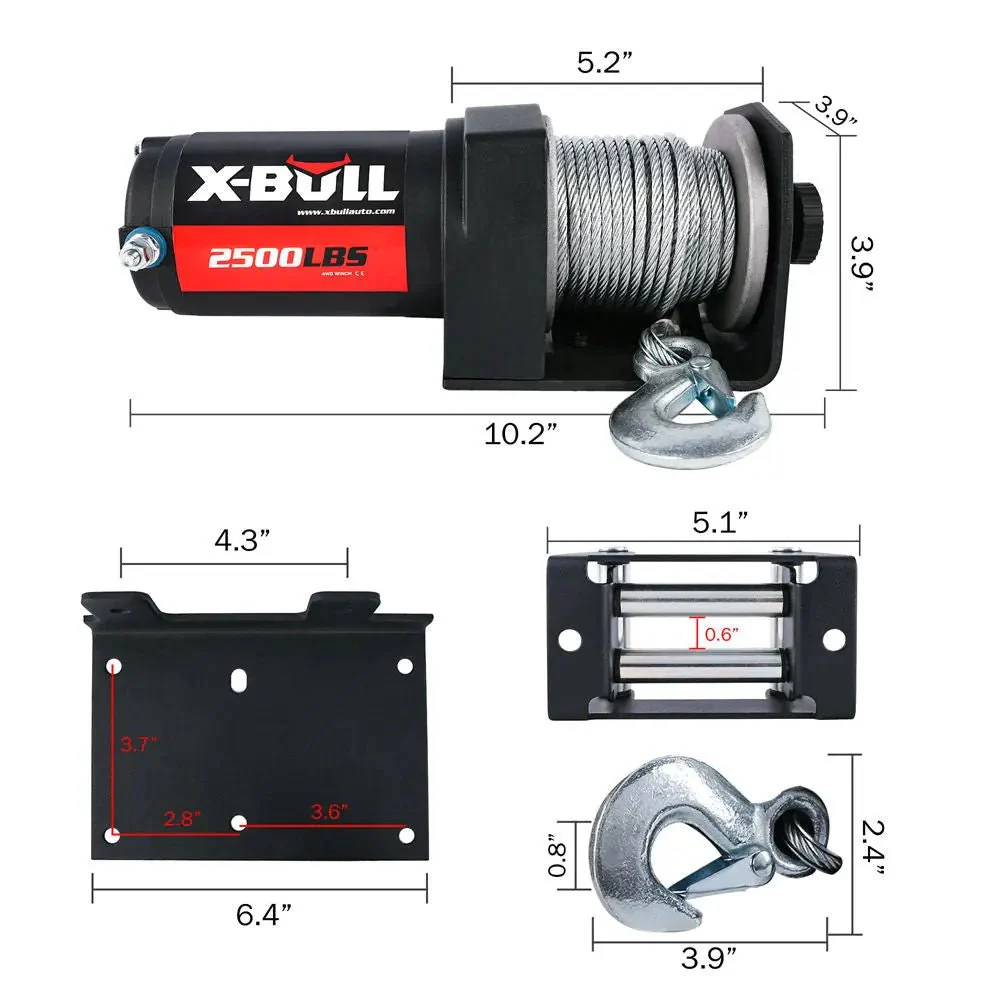

| Overall Dimensions (L x W x H) | 11.3" X 3.9" X 4.3" (286 mm X 99 mm X 108 mm) |
| Drum Size (D x L) | 1.3" X 2.8" (32 mm X 72 mm) |
| Bolt Pattern | 3.15" (80 mm) |
| Weight | 14.70 lbs (6.70 kg) |
| Waterproof Rating | IP65 |
| Line Speed (Max Line Pull) | 2.7 fpm (0.8 mpm) |
| Amp Draw (Max Line Pull) | 132 (@ 12V) |
| Application | ATV/UTV/BOAT |
IN THE BOX
- 1 X 2500 LBS Winch
- 1 X Winch Mounting Plate
- 1 X Wire Remote Control
- 1 X Roller Fairlead
- 1 X Clevis Hook
- 1 X Set of Bolts
- 1 X User Manual
